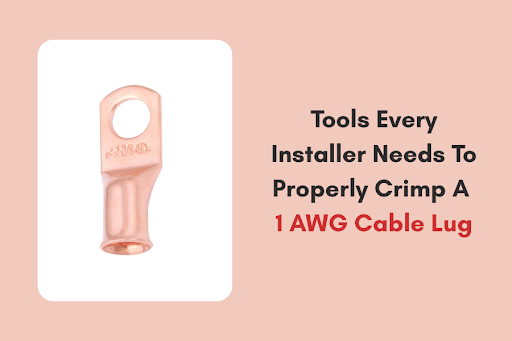

Tools Every Installer Needs To Properly Crimp A 1 AWG Cable Lug
When you’re working with thick cables like 1 AWG, the margin for error gets smaller and the stakes get higher.
If you’re wiring a solar battery bank, replacing an RV electrical system, or installing an inverter that’s heavy-duty, having the appropriate 1 AWG cable lug is only half the task; crimping it correctly is the other half. And for this purpose, you’ll need proper tools.
Good crimping isn’t just about getting a wire to “stick” inside a lug. It’s about creating a solid mechanical and electrical bond, one that won’t loosen over time, heat up under load, or fail when you need it most.
Why Crimping Matters More For 1 AWG Connections
1 AWG lugs are typically used in high-current applications, think solar banks, marine setups, vehicle winches, or battery backup systems. These aren’t places you want poor connections.
Improper crimps can lead to:
- High resistance and voltage drop
- Overheating at the joint
- Weak mechanical connection (which fails under vibration)
- Accelerated corrosion and arcing
To avoid these issues, your crimp needs to be tight, consistent, and clean. And that only happens when you’re using the right tools for the job.
Essential Tools For Crimping A 1 AWG Cable Lug
Let’s break down the must-have tools that every installer or serious DIYer should have on hand when working with 1 AWG lugs.
1. Hydraulic Crimping Tool (Or A Heavy-Duty Mechanical Crimper)
This is non-negotiable.
For 1 AWG cable, a standard handheld crimper simply won’t cut it. You’ll need a tool with enough force to compress the thick copper strands fully into the lug barrel. Hydraulic crimpers give you consistent pressure, clean indents, and a firm bond.
Pro Tip: Look for a tool with interchangeable dies so you can match it precisely to the lug and wire size. Color-coded dies help avoid mismatches.
2. Cable Stripper For Large Gauge Wire
Cutting corners while stripping a 1 AWG cable is risky. If you nick even a few strands, you’re reducing both conductivity and mechanical strength. Use a stripper that is made for large-gauge wire. It will give you a clean cut and won’t damage the core.
If you’ve been stripping a lot of wire on a job, investing in a ratcheting or self-adjusting cable stripper can save you lots of time
3. Heavy-Duty Cable Cutter
Before crimping, the cable need to be cut to length, and using normal wire cutters will not work. You’ll need a ratcheting cable cutter or a tool that works like a bolt cutter that is designed for cutting thick copper cleanly.
Avoid hacksaws or handheld power tools that might leave you with flats or frays. If you don’t cut the wire with a clean round cut the lug barrel will not fit tightly in the lug after crimping the barrel.
4. Heat Gun + Heat Shrink Tubing
After crimping is complete, the next step is sealing the connection. Heat shrink tubing offers insulation, strain relief, and protection from moisture, which is an important concern for marine and outdoor setups.
You should use a quality adjustable heat gun to shrink the tubing evenly around the lug and cable. Avoid using an open flame since it can damage the insulation and potentially shorten the lifespan of the tubing.
5. Torque Wrench Or Nut Driver
After the lug is crimped and heat-shrunk, it’s time to mount it. Whether it’s on a battery post, inverter terminal, or bus bar, tightening it properly is key. Too loose, and it arcs. Too tight, and you risk damaging the stud or lug.
Use a torque wrench (especially in sensitive installs) or a quality nut driver to secure the connection without overdoing it.
Bonus Tools That Make Life Easier
- Dielectric grease: It is used to prevent corrosion of the connection point, especially in humid or marine conditions.
- Multimeter: After installation, ensure continuity and resistance across the connections.
- Label maker or heat shrink labels: Provides a neat and tidy wiring, especially in instances of multi-batteries or inverter installations.
Why Selterm’s 1 AWG Lugs Work Best
Even the best tools can’t make up for poor components. Selterm’s 1 AWG lugs are UL-listed, made from high-conductivity copper, and designed for serious performance. The thick wall design makes them great for tight, strong crimps, and they are available in various stud sizes to fit your application.
Whether you are constructing an off-grid system or rewiring a marine power bank, these lugs are made for a lifetime and to install right the first time.
Final Thoughts
Working with thick cable like 1 AWG isn’t difficult; it just requires the right tools and a little attention to detail. When every amp counts and reliability is non-negotiable, proper crimping becomes one of the most important parts of your electrical setup.
So before your next install, make sure your toolbox is ready. Check out Selterm’s 1 AWG lug collection and give your connections the strength they need to stay locked in, no matter the load, no matter the conditions.
